GENERAL

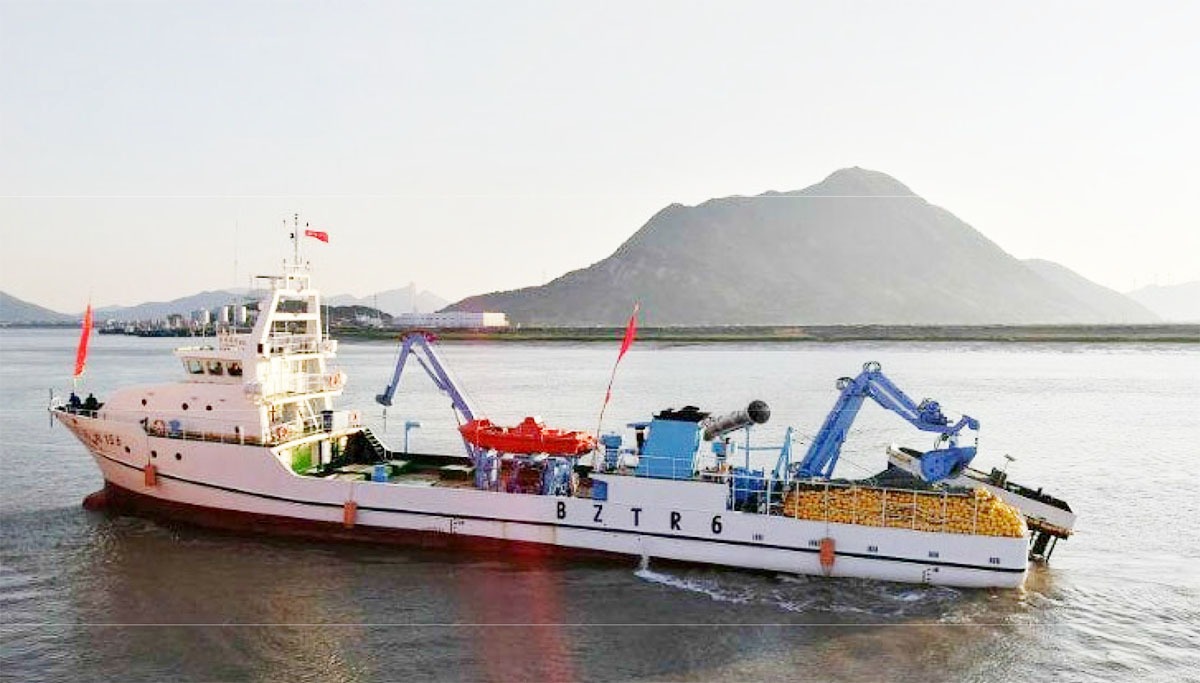

Functions | Purse seine vessel |
Classification | BV,RINA |
DIMENSIONS
Length o.a. Length b.p.p Beam mld. Depth to main deck Scantling draught Processing deck area | 39.80 m 32.80 m 10.00 m 4.50 m 3.50 m 255 m² |
TANK CAPACITIES
Fuel oil Fresh water | 117.39 m³ 50.17 m³ |
HOLD CAPACITIES
Fish hold (-55°C) Cool sea water TK Freezomg room | 175.55 m³ 103 56 m³ 55.17 m³ |
PERFORMANCES
Service speed | 16.5 kn |
PROPULSION SYSTEM
Main engine Propulsion power Propeller Rudder Bow thruster | 1x 8N260ZLC-5 2354 kW 1x Dia:2880 mm Flap type Dia: 1000 mm FPP 250 kW |
ELECTRICAL EQUIPMENT
Networks Main generator sets Emergency generator set | 300/300/75 400V 50 Hz 2x300kW 1x 75 kW |
DECK EQUIPMENT
Fore deck area Aft deck area Derrick crane | Anchor and mooring winches Mooring winches 1x 2 ton |
PROCESSING EQUIPMENT
Wet fish processing line with transport and trim conveyors, trim storage tubes, washing machines/tubes, transport to fish hold including transportable conveyors inside fish hold
FREEZING
Total freezing capacity 20 tons/day at -55°C in plate freezers
ACCOMMODATION
The accommodation is located on main deck and forecastle deck in the superstructure mainly bow of midship in the most motionless area of the vessel. The total capacity is arranged for 18 persons, in 1 six-person cabins on the main deck, 2 two-person cabins and 2 four-person cabins on the forecastle deck Capatain's room and C/ENG room on the NAV BRI deck . Theaccommodation includes mess room, day rooms, galley and food storage,bathing room .
LIFESAVING EQUIPMENT
MOB boat with davit is placed on wheelhouse deck aft in starboard side.
Life rafts are situated on compass deck aft of superstructure two at each side.
NAUTICAL AND COMMUNICATION EQUIPMENT
External communication system, internal communication systems, navigation systems and fish finding systems suitable for ocean seiner fishing in moderate to cold areas.
All datta presented is preliminary and is subject to change without prior notice. Artist impressions and general arrangement plan may show optional equipment. Options may impact performances.

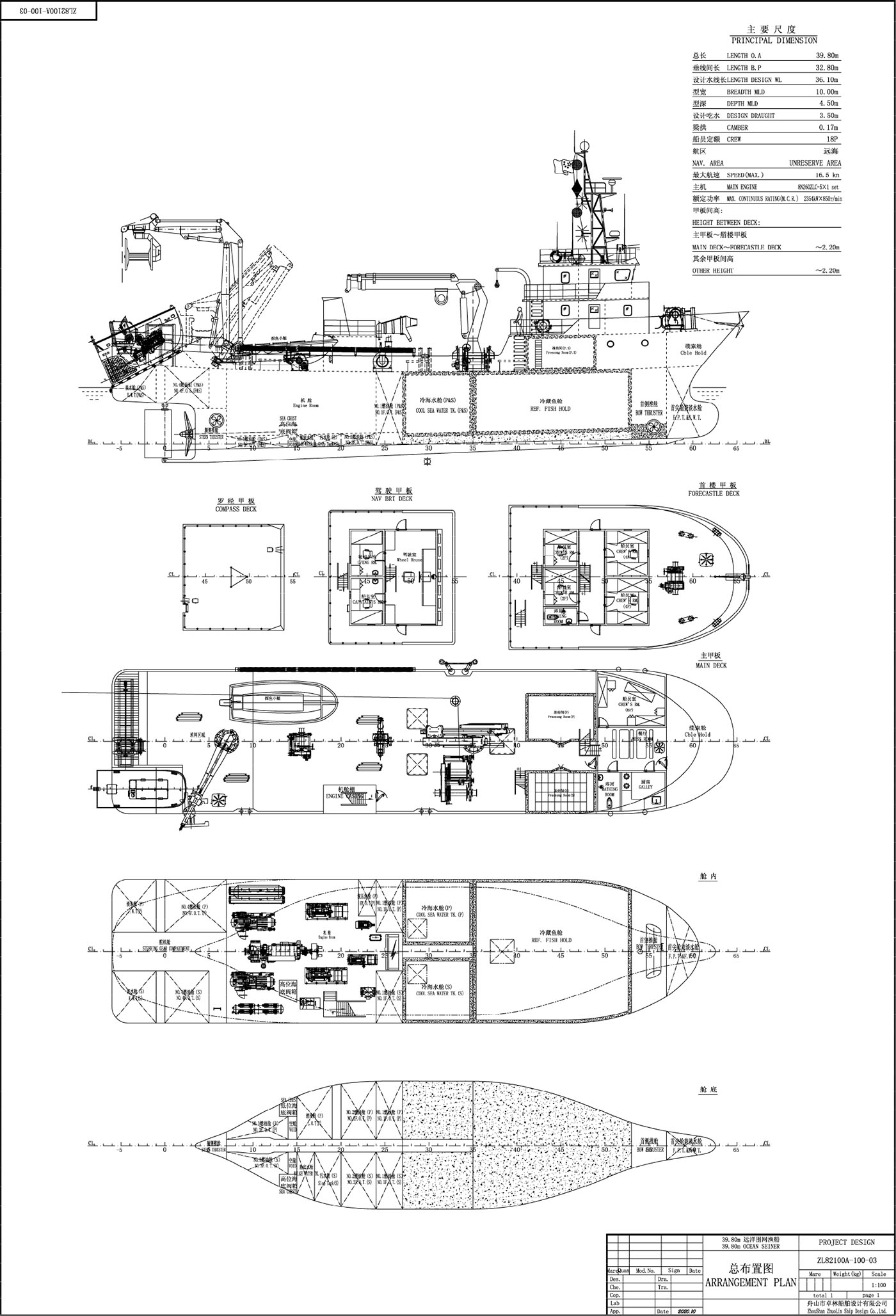

Dimensional drawings
