GENERAL
Functions | Fishing Trawler |
Classification | BV,RINA |
DIMENSIONS
Length o.a. Length b.p.p Beam mld. Depth to main deck Scantling draught Processing deck area | 36.80 m 31.50 m 8.60 m 5.95/3.70 m 3.55 m 100 m² |
TANK CAPACITIES
Fuel oil Fresh water | 216.00 m³ 34.00 m³ |
HOLD CAPACITIES
Fish hold (-30°C) Cool sea water TK Freezomg room | 55.00 m³ 30.38 m³ 238.00 m³ |
PERFORMANCES
Service speed | 10.5 kn |
PROPULSION SYSTEM
Main engine Propulsion power Propeller Rudder | 1x LB6250ZLC-2 735 kW 1x Dia:2600 mm Flap type |
ELECTRICAL EQUIPMENT
Networks Main generator sets Emergency generator set | 150/50 V 50 Hz 2x150kW 1x 30 kW |
DECK EQUIPMENT
Fore deck area Aft deck area | Anchor and mooring winches Mooring winches |
PROCESSING EQUIPMENT
Wet fish processing line with transport and trim conveyors, trim storage tubes, washing machines/tubes, transport to fish hold including transportable conveyors inside fish hold
FREEZING
Total freezing capacity 16.5 tons/day at -30°C in plate freezers
ACCOMMODATION
The accommodation is located on main deck and poop deck in the superstructure mainly bow of midship in the most motionless area of the vessel. The total capacity is arranged for 25 persons , in 1 eight-person cabins and 1 six-person cabins and 1 two-person cabins on the lower deck, in 1 four-person cabins and chief officer and C/ENG room on the aft main deck, Capatain’s room on the bridge deck.
The accommodation includes mess room, day rooms, galley and food storage,bathing room .
LIFESAVING EQUIPMENT
MOB boat with davit is placed on wheelhouse deck aft in starboard side.
Life rafts are situated on compass deck aft of superstructure two at each side.
NAUTICAL AND COMMUNICATION EQUIPMENT
Navigation systems and fish finding systems suitable for ocean seiner fishing navigation systems and fish finding systems suitable for ocean seiner fishing in the tropics.
All datta presented is preliminary and is subject to change without prior notice. Artist impressions and general arrangement plan may show optional equipment. Options may impact performances.

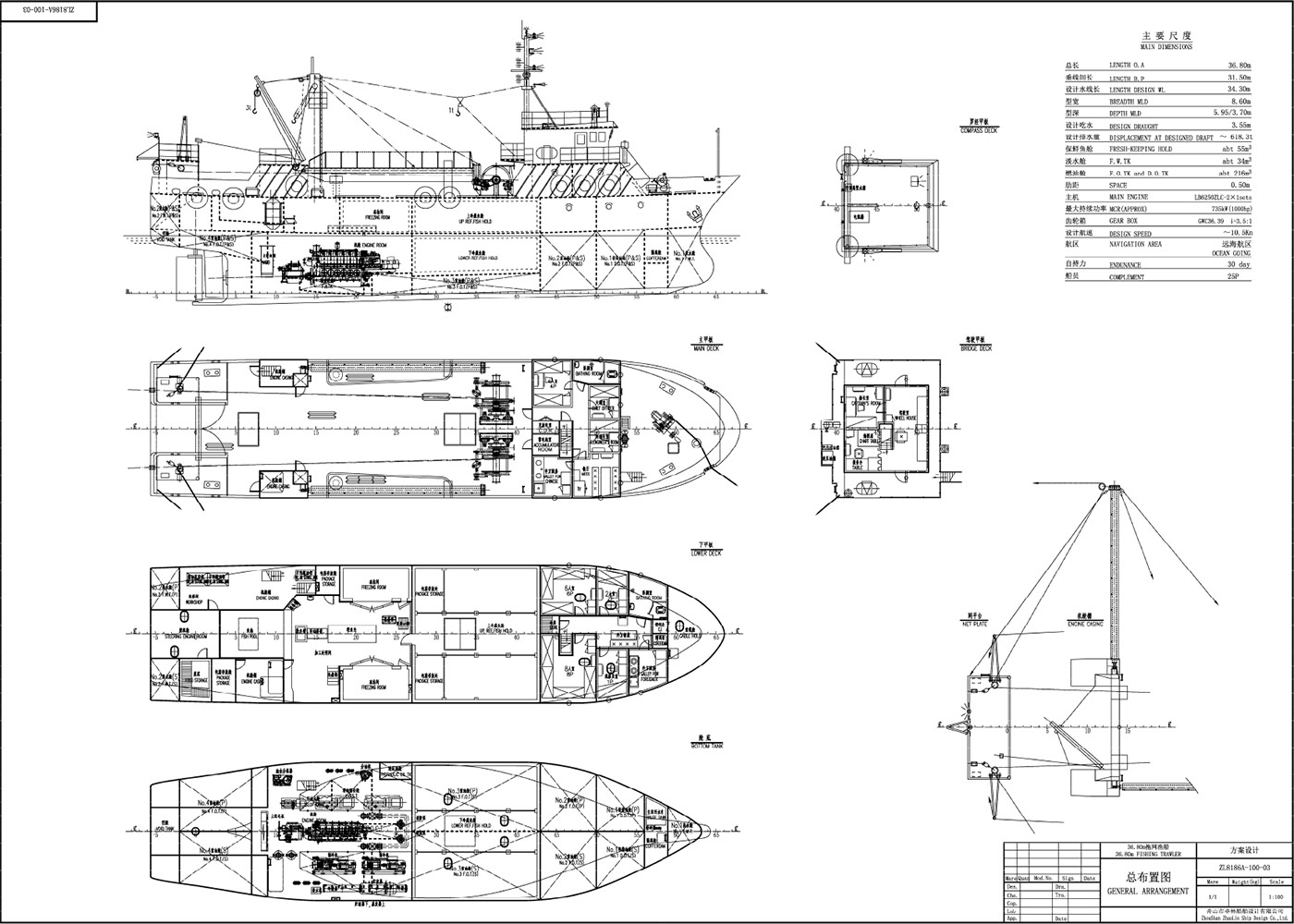

Dimensional drawings
