GENERAL
Functions | Longline Fishing |
Classification | BV,RINA |
DIMENSIONS
Length o.a. Length b.p.p Beam mld. Depth to main deck Scantling draught Processing deck area | 29.98 m 25.80 m 6.05 m 2.70 m 2.30 m 100 m² |
TANK CAPACITIES
Fuel oil Fresh water | 66.12 m³ 20.76 m³ |
HOLD CAPACITIES
Cool sea water TK. Freeze Cabin Refrigerating Hold | 78.28 m³ 10.66 m³ 18.60 m³ |
PERFORMANCES
Service speed | 10.5 kn |
PROPULSION SYSTEM
Main engine Propulsion power Propeller Rudder | 1x KTA19-M600 Cummins 441 kW 1x Dia:1800 mm Flap type |
ELECTRICAL EQUIPMENT
Networks Main generator sets Emergency generator set | 200/50 V 50 Hz 2x200kW 1x 50 kW |
DECK EQUIPMENT
Fore deck area Aft deck area | Anchor and mooring winches Mooring winches |
PROCESSING EQUIPMENT
Wet fish processing line with transport and trim conveyors, trim storage tubes, washing machines/tubes, transport to fish hold including transportable conveyors inside fish hold
FREEZING
Total freezing capacity 13.5 tons/day at -30°C in plate freezers
ACCOMMODATION
The aaccommodation is located on main deck and poop deck in the superstructure mainly bow of midship in the most motionless area of the vessel.The total capacity is arranged for 13 persons , in 1 six-person cabins on the main deck, in 1 four-person cabins and 1 two-person cabins and Capatain’s room on the forecastle deck.The accommodation includes mess room, day rooms, galley and foodstorage,bathing room .
LIFESAVING EQUIPMENT
MOB boat with davit is placed on wheelhouse deck aft in starboard side.
Life rafts are situated on compass deck aft of superstructure two at each side.
NAUTICAL AND COMMUNICATION EQUIPMENT
Navigation systems and fish finding systems suitable for ocean seiner fishing navigation systems and fish finding systems suitable for ocean seiner fishing in the tropics.
All datta presented is preliminary and is subject to change without prior notice. Artist impressions and general arrangement plan may show optional equipment. Options may impact performances.

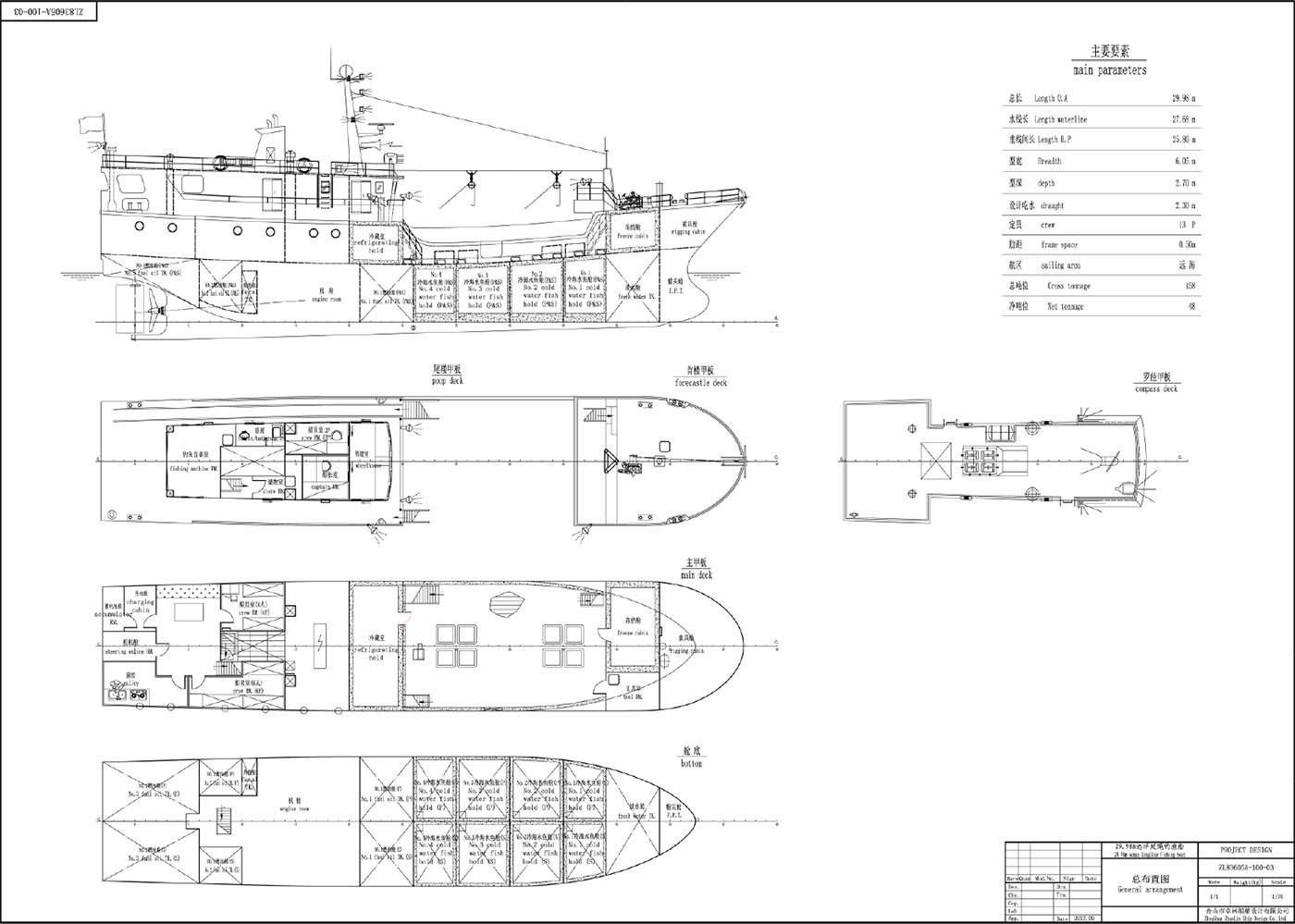

Dimensional drawings
